Parts for the Commodore Plus 4 Keyboard

Care must be taken when dismantling the Plus 4 keyboard as it contains small parts that are easily lost or broken. There is a tiny spring that connects a grounding pad on the PCB to the metal backplate and there are bubble contacts which can drop out. The power LED needs be unclipped from the front side using a small screwdriver to hold back the locking tab. Finally, beware of the screw between the ribbon cable and caps lock switch - this may be hidden by foam tape.

The internal stems of the key caps are fragile and easily broken when removing them. Heating the area gently with a hairdryer may help prevent them snapping, but its much safer to dismantle the keyboard and pop out the plungers from the back.

Products:

Click on the product thumbnail for an enlarged view.

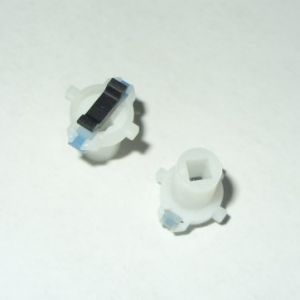

Plus 4 Keyboard Plunger - Pack of 5

Small plunger with conductive pad used in the +4 keyboard
Sold in packs of 5
Please check these match the plungers in your keyboard as there are variations.

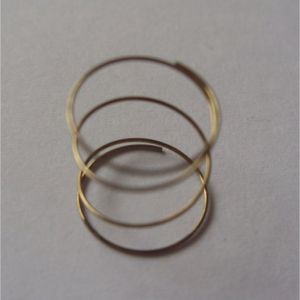

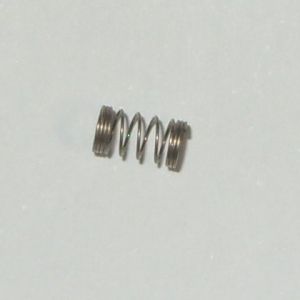

Plus 4 Keyboard Spring - Pack of 5

Very light springs as used beneath the Plus4 keycaps
Sold in packs of 5

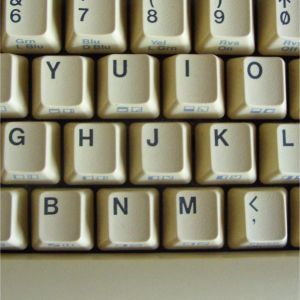

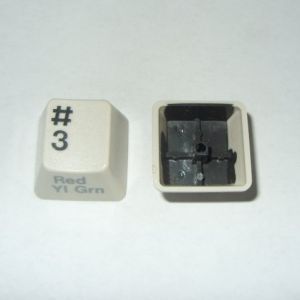

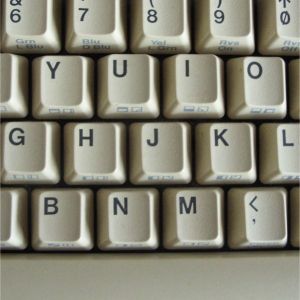

Spare Key Caps For CBM Plus 4 - Grade 1 - Almost no yellowing

Used key caps from a UK Commodore Plus 4. Plungers are not included and are available separately if required. Support bars are included for those keys that have them. The Space bar is listed separately below. Please check your key caps match those in the photo as there are variations.

The following "Grade 1" keys (which have very little yellowing) are currently available (one of each). Keys may have minor wear but all print is intact.

Esc

Control

RunStop

ShLock

[

]

Return

Shift

Also:

F1/F4	F2/F5	F3/F6	Help/F7
Arrow	Arrow	Arrow	Arrow

(Arrows are interchangeable)

Please specify which key(s) you require in the Special Instructions box during checkout - thanks.

(Please don't order keys that are not shown in stock above. Also note that only one key cap of each type is available)

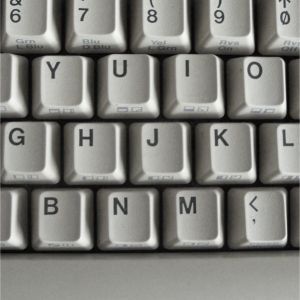

Spare Key Caps For CBM Plus 4 - Grade 2 - Light Yellowing

As above but "Grade 2" keys (light yellowing). Please check the fitting (these are the same as those shown above).

Esc

ClrHome

InsDel

Control

RunStop

ShLock

[

]

Return

Shift

Shift

Also:

F1/F4	F2/F5	F3/F6	Help/F7
Arrow	Arrow	Arrow	Arrow

(Arrows are interchangeable)

Please specify which key(s) you require in the Special Instructions box during checkout - thanks.

(Please don't order keys that are not shown in stock above. Also note that only one key cap of each type is available)

Spare Key Caps For CBM Plus 4 - Grade 3 - Obvious Yellowing

As above but "Grade 3" keys (obvious yellowing, but not orange!) Please check the fitting - these are the same as those shown above.

Esc

ClrHome

InsDel

Control

RunStop

ShLock

[

]

Return

Shift

Shift

Also:

F1/F4	F2/F5	F3/F6	Help/F7
Arrow	Arrow	Arrow	Arrow

(Arrows are interchangeable)

Please specify which key(s) you require in the Special Instructions box during checkout - thanks.

(Please don't order keys that are not shown in stock above. Also note that only one key cap of each type is available)

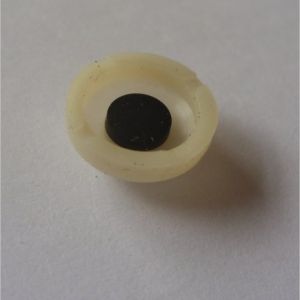

Plus 4 bubble key pad

As used beneath the cursor and function keys
Salvaged part, cleaned and checked for conductivity: OK.
Sold individually

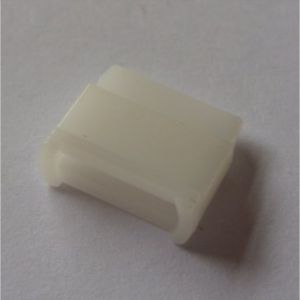

Plus 4 Cursor Plunger

Small plastic insert used under the arrow-shaped cursor keys
Sold individually

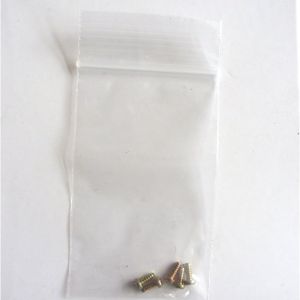

Plus 4 Keyboard PCB screws - pack of 5

These are the tiny gold-coloured screws that attach the keyboard PCB to its front plate
Sold in packs of 5

Space Bar for Plus 4 - Grade 3

Includes associated anchoring bar, plastic inserts and two springs.
Has obvious, even age-yellowing but not is not orange!
