Commodore Plus 4 / C16 connectors

Products:

Click on the product thumbnail for an enlarged view.

7 pin DIN socket for modding Plus 4 to use C64 PSU

7 pin DIN socket for modding the Plus 4 to use a C64 / VIC20 PSU

As the +4 PSU's power plug is unique to the system and the PSU quite rare, people sometimes mod their Plus 4's PCB to allow a standard C64 PSU to be used instead. This is often a straight swap out of the connector, but some boards need more work doing. Info about that can be found here: https://hackjunk.com/2017/05/29/commodore-plus-4-power-connector-to-c64-version

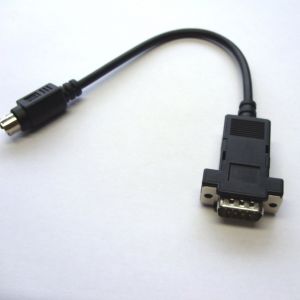

C16 / Plus4 Joystick Adapter

C16 / Plus4 Joystick Adapter

A short adapter cable with a male 8 pin mini-DIN on one end and a male D-Sub9 connector on the other, allowing standard Atari/C64/Amiga style joysticks to be connected to the C16 / Plus 4
Note: Due the non-standard C16/+4 port connections, any auto-fire feature present on your joystick may not work.

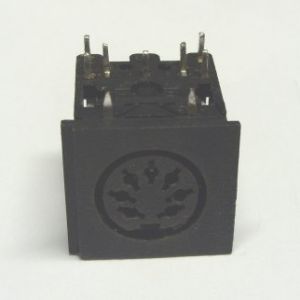

C64 A/V socket (also for C16 / Plus4) - 8 pin DIN *New*

Audio / Video socket (8 pin DIN) for Commodore 64, CBM +4

Brand new 8-pin DIN socket with the uncommon "horseshoe" pin arrangement used on all but the earliest C64s (those have a 5 pin video connector)
Also used on the Commodore +4 and C16

C64 Serial / Disk Drive socket (also for C16,+4, Vic20) - 6 pin DIN *NEW*

Serial / IEC Disk Drive connector (6 pin DIN socket)

Brand new C64 serial port PCB socket
Also used on the C16, Commodore +4 and VIC20

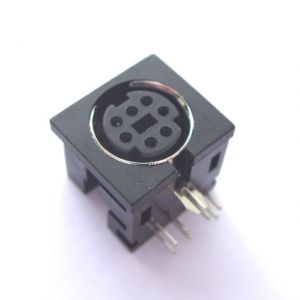

Plus 4 / C16 1531 Cassette Port Socket

Plus 4 / C16 1531 Cassette Port Socket

7 pin mini DIN socket as used for the 1531 tape deck connector on the Plus4 and C16 motherboard
Brand new

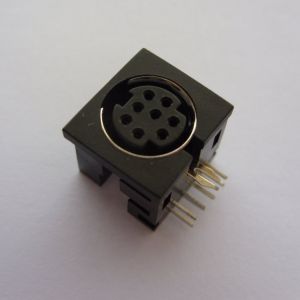

Plus 4 / C16 Joystick Port Socket

Plus 4 / C16 Joystick Port Socket

Brand new 8-Pin Mini DIN socket as used for the Joystick Ports on the Plus4/C16
