Modifications for Spectrum 128 variants

Products:

Click on the product thumbnail for an enlarged view.

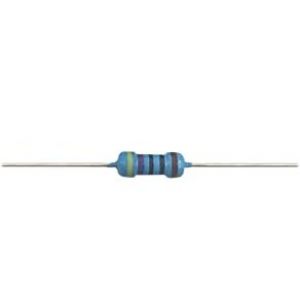

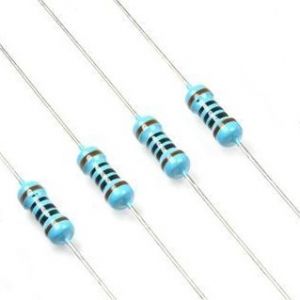

1.65K Resistor - Toastrack AY-Beeper Balance Mod

1.65K Resistor - Toastrack AY-Beeper Balance Mod

When using a SCART lead with the Spectrum 128, the audio level of the AY sound chip is much lower than that of the beeper from the ULA. Replacing R115 (just left of the ULA)  with a 1.65K resistor gives a more equal balance.

Price: £ 0.20   Add to cart. (8 in stock)

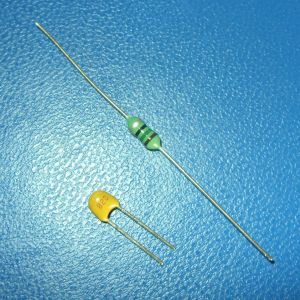

15uH inductor + 82pf Capacitors for Spectrum 128 +2 Video mod

A 15uH inductor & 82pf Capacitor for Spectrum 128 and +2 Video mod

Spectrum 128 / +2s often have a yellow/cyan shadow in their RF and Composite video output. It is possible to reduce this effect by connecting a 15uH inductor and a 82pf capacitor in series and soldering them between pins 8 and 17 of the Spectrum 128 +2's TEA2000 video encoder chip.

See the page on spectrumforeveryone and JoulesperCoulomb's youtube video for details.

Price: £ 0.99   Add to cart. (2 in stock)

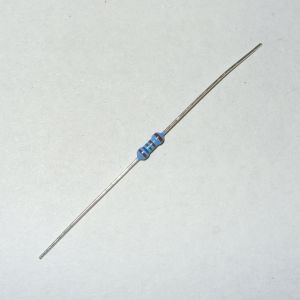

470 Ohm resistor - R44 mod on Spectrum +2A,+2B, +3

470 Ohm resistor

  • Suitable for replacing the 1K resistor at R44 to do the "blanking mod" on the Spectrum +2A, +2B and +3 (improves a dark, flickering or ghosted picture when using an RGB SCART cable with LCD TVs). More info can be found here
Price: £ 0.20   Add to cart. (13 in stock)
48 pin Heatsink *Bare*

48-pin size heatsink - Bare

  • Approx dimensions: 62 x 20 x 6mm
  • Suitable for the larger VIC chips in the Commodore 128
  • Can also be used for Spectrum Toastrack 128 ULA (as long as the chip is soldered directly to the PCB, not in a socket)
  • The heatsink is bare aluminium, you can use thermally conductive glue to attach it (or get the version with the thermal tape attached).
Price: £ 1.75   Add to cart. (2 in stock)

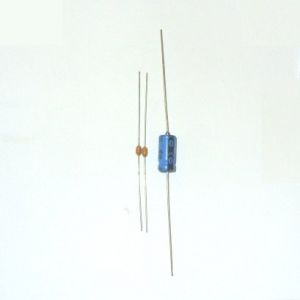

Anti Jailbar capacitors for Toast Rack Spectrum 128

Anti-Jailbar capacitors for Toastrack Spectrum 128

It has been found that replacing C7 and C8 with 1uf ceramic capacitors and the 22uf electrolytic cap at C28 with a 47uf version often reduces the jailbar effect on the "toastrack" Spectrum 128. This kit contains all three caps. More info can be found here.

Price: £ 0.99   Add to cart. (6 in stock)
C128 48 pin Heatsink *Self Adhesive*

48-pin size heatsink - Self Adhesive

  • As above but has special thermally conductive pad attached, ready to peel and apply.
  • Alcohol wipe included
Price: £ 2.00   Add to cart. (1 in stock)

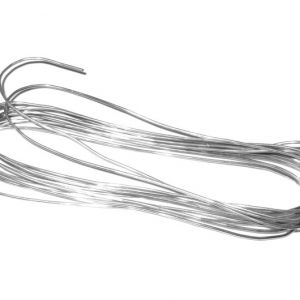

Solder 3 Metres 0.7mm

3 Metres of flux-cored 60/40 tin-lead solder

Good quality, 0.7mm diameter - ideal for fine electronics work.

Price: £ 0.99   Add to cart. (17 in stock)

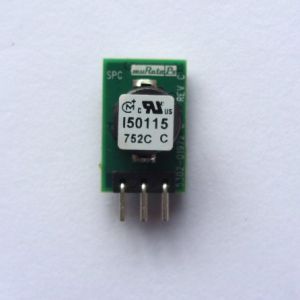

Switch Mode 5v Regulator - Unmodded, vertical mount (replaces 7805)

MuRata OKI Switch Mode 5v Regulator for Spectrum 128 "Toast Rack"

A replacement for the cheap inefficient 7805 used in the Spectrum 128 "Toastrack". This high-efficiency switch mode regulator wastes very little power as heat so no heatsink connection is required. It mounts directly onto the PCB where the 7805-connector wires are soldered.

  • High efficiency 5v 1.5A output
  • Short circuit protection
  • Over current shutdown
  • Over temperature shutdown
  • Unmodified for direct-PCB vertical mounting in Toastrack Spectrum (instructions included).
  • Can also be used in the standard Spectrum48, but as this version of the MuRata regulator is unmodified it cannot be used on Spectrum48 Issue2 boards (in a rubber-key case) as the regulator must be horizontally mounted due to space constraints. (See the Spectrum Mods section for a version modded for horizontal mounting.)

Note: Will be out of stock for the foreseeable future due to the worldwide component shortage.

Price: £ 4.75   Add to cart. (out of stock)

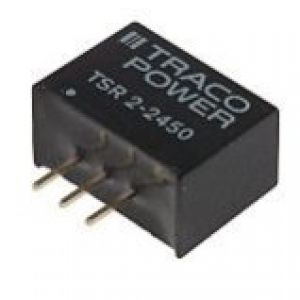

Traco 2 Amp 5 Volt switching regulator

Traco 2 Amp 5 Volt switching regulator

  • Cool running power regulator capable of delivering 5 volts @ 2 Amps
  • Replaces the L78S05 regulator header in the Spectrum 128+2 (solder direct to PCB)
  • Large heatsink no longer needed.
  • Pin out / fitting diagram included.
Price: £ 12.50   Add to cart. (7 in stock)
