1541 Capacitors

Products:

Click on the product thumbnail for an enlarged view.

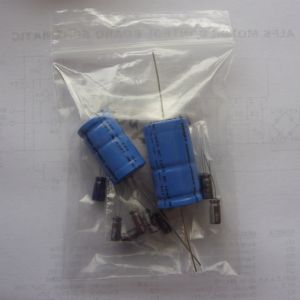

Capacitor Pack for 1541 Disk Drive - Type 1 -  Assm No. 1540001

Replacement Cap Set for 1541 Disk Drive: Type 1 for PCB Assm: 1540001

High quality brand (Panasonic, Vishay, Nichicon) long life caps:

  • C1,C4- 1uf radial
  • C2,C5 - 47uf radial
  • C56 - 100uf radial
  • C65 - 220uf  radial
  • C51 - 6800uf axial
  • C52 - 10,000uf axial
  • Also included, for the motor control PCB: 3 x 10uf, 2 x 4.7uf, 1 x 2.2uf, 1 x 1uf, 2 x 0.47uf (all radial types) these cover three of most common varients of this sub-board. Please check if you need different types.

IMPORTANT: Please check your board's assm number (or the caps themselves) before ordering. If you require a pack with differing caps, contact me and I'll see what I can do.

Price: £ 9.99   Add to cart. (1 in stock)

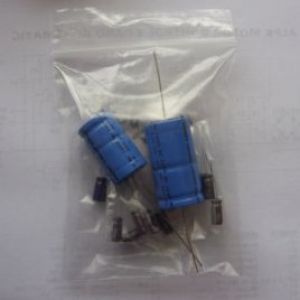

Capacitor Pack for 1541 Disk Drive - Type 2- Assm No. 1540048 & 250442/46

Replacement Cap Set for 1541 Disk Drive: Type 2 - For PCB Assm: 1540048, 1540050 & 250442/46

High quality brand (Panasonic, Vishay, Nichicon) long life caps:

  • C1,C4- 1uf radial
  • C2,C5 - 47uf radial
  • C13 - 220uf  radial
  • C16 - 4700uf axial
  • C17 - 6800uf axial
  • C46 - 100uf radial

Also included, for the motor control PCB:

  • 3 x 10uf, 2 x 4.7uf, 1 x 2.2uf, 1 x 1uf, 2 x 0.47uf (all radial types) these cover 3 of most common varients of this sub-board. Please check if you need different types.

IMPORTANT: Please check your board's assm number (or the caps themselves, especially the 6800uf at C16) before ordering. If you require a pack with differing caps, contact me and I'll see what I can do.

Price: £ 9.99   Add to cart. (out of stock)
Capacitor Pack for 1541 Disk Drive - Type 3 for Assm no. 250448 / 251854

Replacement Cap Set for 1541 Disk Drive: Type 3 for PCB Assm: 250448 / 251854

High quality brand (Panasonic, Vishay, Nichicon) long life caps:

  • C1,C2- 1uf radial
  • C4, C6, C13, C22 - 47uf radial
  • C7 - 4700uf axial
  • C8 - 6800uf axial
  • Also included, for the motor control PCB: 3 x 10uf, 2 x 4.7uf, 1 x 2.2uf, 1 x 1uf, 2 x 0.47uf (all radial types) these cover 3 of most common varients of this sub-board. Please check if you need different types.

IMPORTANT: Please check your board's assm number (or the caps themselves, especially the 6800uf at C16) before ordering. If you require a pack with differing caps, contact me and I'll see what I can do.

Price: £ 9.99   Add to cart. (out of stock)

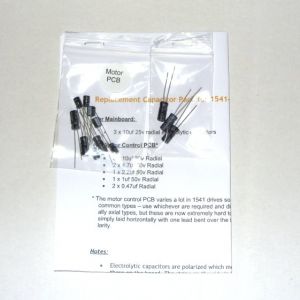

Capacitor Pack for 1541-ii disk drive (assembly no. 340503)

Capacitor Pack for 1541-ii disk drive

For Mainboard:

  • 3 x 10uf 25v radial electrolytic capacitors

For motor control PCB:

  • 3 x 10uf 35v Radial
  • 2 x 4.7uf 50v Radial
  • 1 x 2.2uf 50v Radial
  • 1 x 1uf 50v Radial
  • 2 x 0.47uf Radial
Price: £ 2.99   Add to cart. (2 in stock)
Capacitor Pack for 1571 disk drive  - Assy no 310420

Capacitor Pack for the 1571 disk drive - Assembly no 310420

High quality brand (Panasonic, Vishay, Nichicon) long life caps:

For mainboard:

  • C21,C29 - 10uf
  • C28 - 47uf
  • C31 - 1uf

and for PSU board:

  • C7 - 6800uf 25v
  • C8 - 4700uf 16v
  • C1/C4- 1uf
  • C2/C5 - 47uf

Please check your board's assm number (or the caps themselves) before ordering. If you require a pack with differing caps, contact me and I'll see what I can do.

Price: £ 9.99   Add to cart. (out of stock)
Capacitor Pack for 1571 disk drive - Assy no 325188-01 REV A / 310422 rev 7

Capacitor Pack for the 1571 disk drive with Assembly no 325188-01 REV A / 310422 rev 7

High quality brand (Panasonic, Vishay, Nichicon) long life caps:

For mainboard:

  • C21,C29 - 10uf
  • C28 - 47uf
  • C31 - 1uf

and for PSU board:

  • C7 - 4700uf 40v
  • C8 - 4700uf 16v
  • C1, C4- 4.7uf

Please check your board's part number (or the caps themselves) before ordering.

Price: £ 9.99   Add to cart. (out of stock)
Ceramic disc capacitors 10 x 100nf (0.1uf)

Ten 100nf (0.1uf) ceramic disc capacitors

  • As used in various locations the PCB (usually marked "104" on the body of the cap) of the Commodore 64, Spectrum and other micros
  • Ceramic capacitors do not age in the same way as electrolytics so usually don't need to be replaced, but they are quite fragile and sometimes found physically damaged.
Price: £ 0.99   Add to cart. (10 in stock)
Ceramic disc capacitors 10 x 10nf (0.01uf)

Ten 10nf (0.01uf) ceramic disc capacitors

  • As used in various locations the PCB (usually marked "103" on the body of the cap) of the Commodore 64, Spectrum and other micros
  • Ceramic capacitors do not age in the same way as electrolytics so usually don't need to be replaced, but they are quite fragile and sometimes found physically damaged.
Price: £ 0.99   Add to cart. (2 in stock)
Ceramic disc capacitors 10 x 22nf

Ten 22nf ceramic disc capacitors

  • As used in various locations the PCB (usually marked "223" on the body of the cap) of the Commodore 64, Spectrum and other micros
  • Ceramic capacitors do not age in the same way as electrolytics so usually don't need to be replaced, but they are quite fragile and easily damaged.
Price: £ 0.99   Add to cart. (15 in stock)
Ceramic disc capacitors 10 x 4.7nf

Ten 4.7nf ceramic disc capacitors

  • As used in various locations the PCB (usually marked "472" on the body of the cap) of the Commodore 64, Spectrum and other micros
  • Ceramic capacitors do not age in the same way as electrolytics so usually don't need to be replaced, but they are quite fragile and sometimes found physically damaged.
Price: £ 0.99   Add to cart. (10 in stock)
Ceramic disc capacitors 10 x 47nf

Ten 47nf ceramic disc capacitors

  • As used in various locations the PCB (usually marked "473" on the body of the cap) of the Commodore 64, Spectrum and other micros
  • Ceramic capacitors do not age in the same way as electrolytics so usually don't need to be replaced, but they are quite fragile and easily damaged.
Price: £ 0.99   Add to cart. (12 in stock)
