PCB Mounted Sockets

Sockets used on mainboards for serial, video connectors, PSU etc

Products:

Click on the product thumbnail for an enlarged view.

C64 A/V socket (also for C16 / Plus4) - 8 pin DIN *New*

Audio / Video socket (8 pin DIN) for Commodore 64, CBM +4

  • Brand new 8-pin DIN socket with the uncommon "horseshoe" pin arrangement used on all but the earliest C64s (those have a 5 pin video connector)
  • Also used on the Commodore +4 and C16
Price: £ 1.50   Add to cart. (13 in stock)
C64 Power socket  - 7 pin DIN - Later type with 5mm spaced anchor pins *NEW*

Power socket - 7 pin DIN for Commodore 64 and C64C - Common type

  • New, unused power socket suitable for C64 boards which have the socket anchoring pins 5mm apart, ie: ,ost of the later boards and not PCB revision KU-14194 HB / 326298 / earlier - those boards have anchoring pins 10mm apart.
  • Please see this photo for comparison. A suitable socket for early boards is listed below.
Price: £ 1.99   Add to cart. (14 in stock)
C64 Power socket - Early type 7 Pin DIN with 10mm anchor pins *NEW*

Power socket - 7 pin DIN - for Early Commodore 64s KU-14194 HB & Assy 326298

  • Important: This type has the anchoring pins 10mm apart. It is suitable for very early boards such as the KU-14194 HB and Assy: 326298. It is not suitable for the common later boards which have the anchoring pins ~5mm apart. Please see this photo for comparison.
  • Brand new.
Price: £ 0.99   Add to cart. (20 in stock)
C64 Serial / Disk Drive socket (also for C16,+4, Vic20)  - 6 pin DIN *NEW*

Serial / IEC Disk Drive connector (6 pin DIN socket)

  • Brand new C64 serial port PCB socket
  • Also used on the C16, Commodore +4 and VIC20
Price: £ 0.99   Add to cart. (18 in stock)
C64 Video socket  - Early Breadbin 5 pin DIN *NEW*

Audio / Video socket : 5-pin DIN for early Commodore 64s & VIC20

  • A brand new 5-pin DIN socket as used on very early breadbin C64 boards and the VIC20
Price: £ 1.50   Add to cart. (10 in stock)

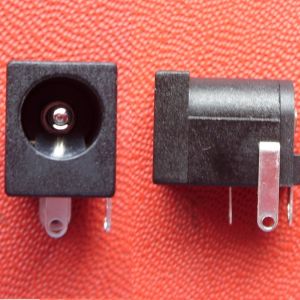

DC 2.1mm power socket for Spectrum 16/48 128K etc

Replacement 2.1mm DC Power Socket

  • A new high quality ("Cliffe" branded) replacement for worn / damaged power sockets on original 16/48K model ZX Spectrum, Spectrum+, Toastrack 128 and grey +2
Price: £ 0.75   Add to cart. (47 in stock)

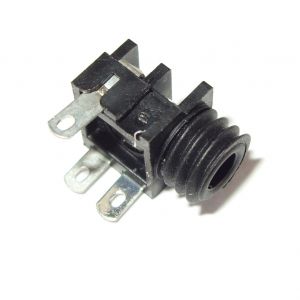

Ear / Mic socket

Ear / Mic connector

The mic / ear sockets on the Spectrum (and ZX81) can become loose / corroded over the years making tape connection intermitent.

  • Brand new direct replacement socket.
  • Also used in the "Toastrack" 128 and for Power-in / Ear / Mic in the ZX81
Price: £ 1.75   Add to cart. (4 in stock)

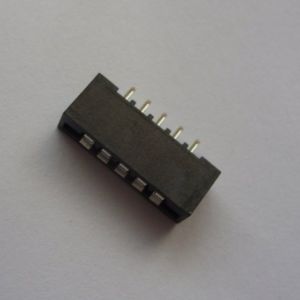

Keyboard membrane PCB connector 5 way

Keyboard membrane connector - 5 way type (Left side)

  • For original Spectrum, ZX81 and "Toastrack" 128
  • Brand new
Price: £ 0.85   Add to cart. (15 in stock)

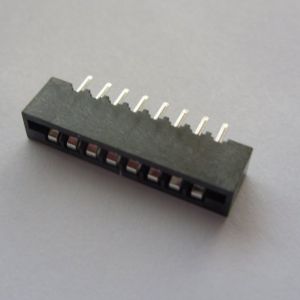

Keyboard membrane PCB connector 8 way

Keyboard membrane connector - 8 way type (right side)

  • For original Spectrum, ZX81 and "Toastrack" 128
  • Brand new
Price: £ 0.99   Add to cart. (17 in stock)
