Connectors for the Amstrad CPC 464

Products:

Click on the product thumbnail for an enlarged view.

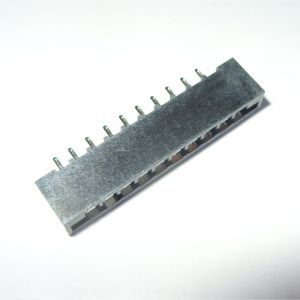

10 pin Keyboard connector -  Amstrad CPC 464

10-pin Keyboard connector for Amstrad CPC 464

  • For the flat ribbon type keyboard tails
  • Sold individually (two of these are used on Z70200 and Z70375 PCBs)
Price: £ 0.99   Add to cart. (8 in stock)
14 pin DIL socket

14 Pin DIL chip Socket

DIL 14 socket (suitable for 74LS00, 74LS08, 74LS32, 74LS74, 7406, 4066 etc)

Price: £ 0.10   Add to cart. (88 in stock)
16 Pin DIL socket

16 Pin DIL Chip Socket

DIL 16 socket (Suitable for 4116, 4164, 4044, 74LS139, 74LS157, 74LS257, 74LS258 etc)

Price: £ 0.14   Add to cart. (39 in stock)
18 pin DIL socket

18 Pin DIL chip Socket

DIL 18 socket (suitable for LM1889 Video encoder, 41464 RAM chip etc)

Price: £ 0.15   Add to cart. (48 in stock)
2.1mm DC power socket for Spectrum 128, Grey +2 and Amstrad CPC464

2.1mm DC Power Socket for  Spectrum 128+2 & Amstrad CPC 464

  • This version is a more robust socket with a higher current rating to match the beefier power supply used on these models. It can also be used in the earlier Spectrum models, if desired.
Price: £ 1.25   Add to cart. (4 in stock)
20 Pin DIL socket

20 Pin DIL Chip Socket

DIL 20 socket (Suitable for 74LS373 etc)

Price: £ 0.20   Add to cart. (52 in stock)
28 Pin DIL Socket

28 Pin DIL Socket

DIL28 Socket - Suitable for for ROM in Spectrum, SID and PLA chips in the Commodore 64

Price: £ 0.39   Add to cart. (6 in stock)
40 Pin DIL Socket

40 Pin DIL Chip Socket

DIL40 socket. EG: for Z80 and ULA on Spectrum & CPC464 and CPU, VIC-II, CIAs on Commodore 64

Price: £ 0.42   Add to cart. (17 in stock)

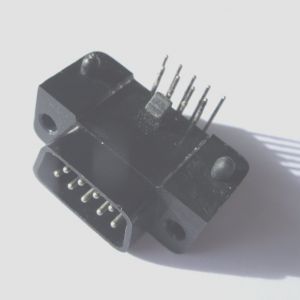

Commodore 64 Joystick port - Salvaged

Joystick connector for Commodore 64 and other computers

  • Salvaged part, removed from a breadbin style C64.
  • Clean, undamaged (pins are not corroded) and in good working order.
  • Supplied with screws.
  • Also used in the "short board" VIC20
  • Can be used on the spectrum 128 +2 and Amstrad CPC 464 (using the screws to hold it in place instead of the clipping lug).
Price: £ 2.50   Add to cart. (10 in stock)

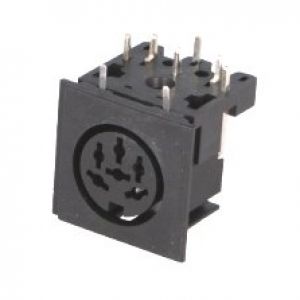

Replacement AV Connector - 6 pin DIN socket - for Amstrad CPC 464

Amstrad CPC464 AV Connector - 6 pin DIN socket

  • Brand new 6 pin DIN socket
Price: £ 1.99   Add to cart. (1 in stock)
SCART plug

SCART Plug

Brand new  - suitable for making up TV cables etc

Price: £ 1.95   Add to cart. (1 in stock)

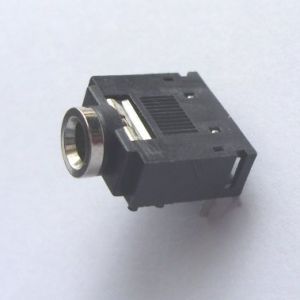

Spectrum 128 +2A/B +3 and Amstrad CPC464 Audio socket

Spectrum 128 +2A/B +3 audio socket (also Amstrad CPC464)

  • For the black Amstrad era Spectrum 128s (+2A/B, +3)
  • Like the original connectors, these are actually stereo sockets - the left and right channels (ie: the tip and centre band of the jack) are connected together on the Spectrum PCB.
  • Not suitable for the "Toast rack" 128 or grey 128 +2
Price: £ 0.50   Add to cart. (6 in stock)
