Various Other ZX Spectrum Spares

Various other spares for the ZX Spectrum.

Products:

Click on the product thumbnail for an enlarged view.

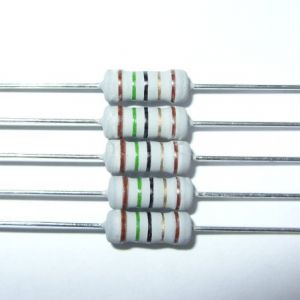

15 Ohm 1 Watt Resistor (R34)

15 Ohm 1 Watt Resistor

  • A large hIgher power 15 Ohm resistor used at position R34 on Spectrum boards
  • Sold individually
Price: £ 0.25   Add to cart. (20 in stock)

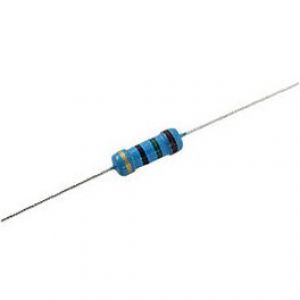

15 Ohm Resistor for R62

15 Ohm Resistor

  • Used at R62 - Can easily burn out especially if there has been smoke / problems with TR4/TR5
  • Symptoms when bad: Spectrum essentially OK but very dark / no / monochrome video (and unnaffected by trimmers on issue TWOs). Pin 14 of LM1889 (IC14) is a lot lower than 12v.
Price: £ 0.15   Add to cart. (25 in stock)
3 Amp Fuse for UK Mains Plug

3 Amp Fuse for UK Mains Plug

  • Appropriate fuse for the UK mains plug of Spectrum, Commodore 64 etc
  • Brand new, made to BS1362 standard - ASTA approved.
Price: £ 0.25   Add to cart. (25 in stock)
7805 5 Volt Regulator IC

7805 Voltage Regulator

Replacement 5 volt regulator IC for the Spectrum, (breadbin) Commodore 64, ZX81 etc

Price: £ 0.50   Add to cart. (42 in stock)

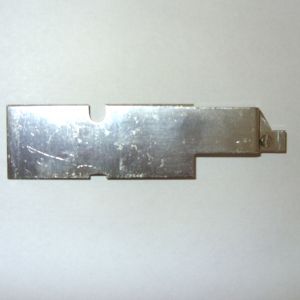

Heatsink for Issue 3 and above PCB Sinclair ZX Spectrum

Heatsink for issue 3-6A Spectrum PCB

  • Original, used part in good condition.
  • Includes standard slotted 4BA cheesehead bolt, shake-proof washer, insulating washer and nut.
  • When fitting: Bolt passes through washer, then 7805, then heatsink, then PCB, then insulating washer (only required if your board has nearby traces, EG: the 6A), then nut.
  • Note: 4S (Samsung made) boards used a brass Philips head screw, this isn't particularly important but I have those listed above if required.
Price: £ 1.75   Add to cart. (2 in stock)

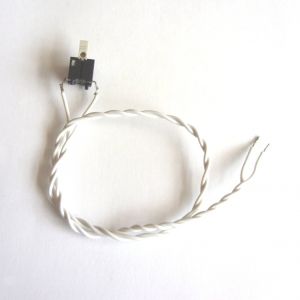

Internal reset switch for Spectrum+ *New*

New internal reset switch for Spectrum+ or Toastrack 128

  • Brand new
  • Same as original reset switch but has a light grey plunger instead of brown/black (Note: if you have an original reset switch that has gone bad, you can actually swap the original plunger to the new switch body by gently tilting it to the side until it comes out (care must be taken to avoid breaking anything.)
  • For Spectrum+ and Toastrack 128
Price: £ 3.50   Add to cart. (4 in stock)

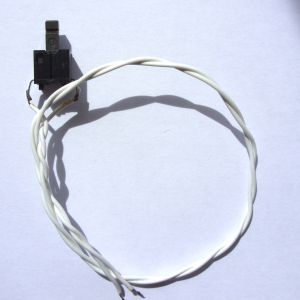

Internal reset switch for Spectrum+ *Original*

An original internal reset switch for Spectrum+ (used) and Toastrack 128

  • As used in the Spectrum+ (soldered across capacitor C27 - or at the provided pads on issue 6 motherboards)
  • Also used in the Toastrack 128
  • Tested, working.
Price: £ 3.99   Add to cart. (5 in stock)

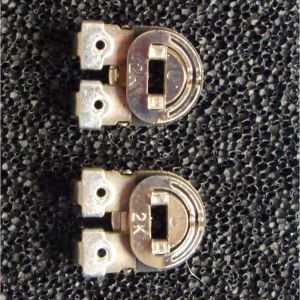

Pair of trimmer pots for Issue 2 Spectrum PCBs

A pair of 2.2K trimmers (variable resistors)

  • As used on Issue TWO Spectrum PCB for adjusting colour output  (the old trimmers can become intermittent and unreliable)
  • Two supplied in this pack.
Price: £ 0.75   Add to cart. (8 in stock)

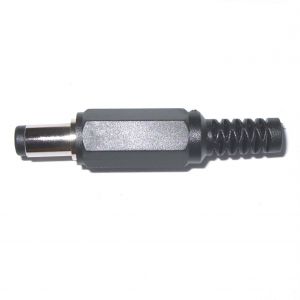

Replacement DC jack plug for Spectrum UK1400 PSU

Replacement DC Jack plug for Spectrum PSU

  • A good quality, high current rated replacement for the original PSU jack plug.
  • Remember when soldering: The Spectrum PSU is unusual in that the inner pin is negative and the outer barrel is positive. (Getting these reversed will fry your Spectrum!)
Price: £ 0.99   Add to cart. (7 in stock)

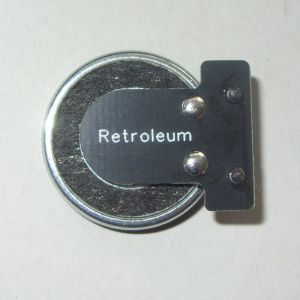

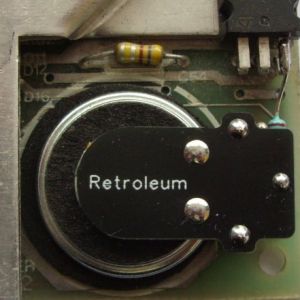

Speaker module for Spectrum Issue 2 PCB - 200 ohms

New speaker module for Issue 2 (only) ZX Spectrum motherboard

  • With suitable 200 Ohm speakers seemingly impossible to source new, I've designed a replacement module. It uses a standard low impedence small speaker but with a buffer and amplifier so that it still presents a ~200 Ohm load to the Spectrum.
  • For Issue 2 boards only (from Issue 3 onwards, a 40 Ohm speaker was used - see below)
Price: £ 5.50   Add to cart. (10 in stock)

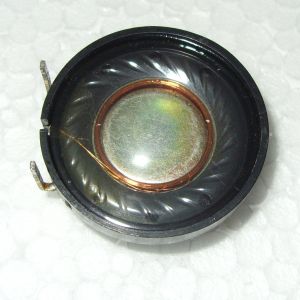

Speaker module for Spectrum Issue 3-6 PCB - 40 ohms

New speaker module for Issue 3-6 ZX Spectrum motherboard

  • A replacement module for the original 40 Ohm speaker as used on Issue 3 boards onwards
  • Not suitable for Issue 1 and 2 Spectrums which used a 200 Ohm speaker, see above for those.
Price: £ 4.99   Add to cart. (9 in stock)

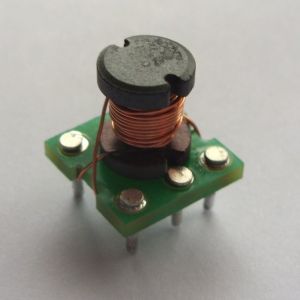

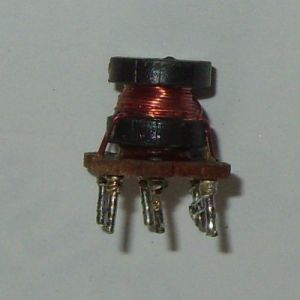

Spectrum PCB - New power coil - complete

New power transformer coil for Spectrum 16/48K PCB

  • Part of the circuit in Spectrums that generates the -5v and 12v power rails.
  • These are brand new transformer coils made by myself.
  • All tested before dispatch.
Price: £ 7.95   Add to cart. (5 in stock)

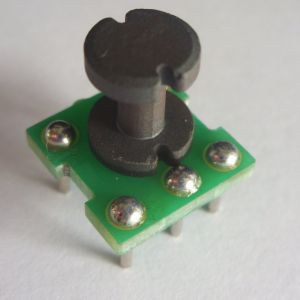

Spectrum PCB coil former only

BARE transformer coil former for Spectrum 16/48K PCB

  • A * bare * ferrite core former and mounting PCB / pins.
  • No coil windings! Suitable enamelled copper wire is available below. Instructions are provided.
  • Brand new - made by myself.
Price: £ 2.99   Add to cart. (4 in stock)

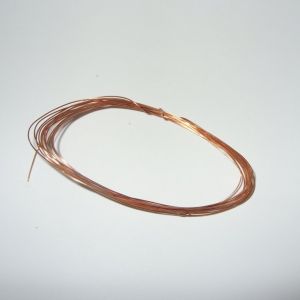

ZX Spectrum enameled copper wire for repairing a Spectrum power coil

2 Metres of 0.3mm gauge enameled copper wire

  • Suitable for repairing a Spectrum power coil
  • Instructions provided
Price: £ 0.99   Add to cart. (19 in stock)
