Misc. components for Commodore 64
Various parts found in the C64 Products:
Click on the product thumbnail for an enlarged view.

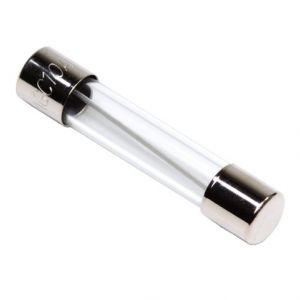

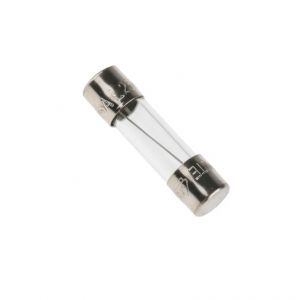

Brand new replacement internal fuse for Commodore 64
- A 32mm (1.25") 1.5 Amp quick acting fuse as used inside the C64.

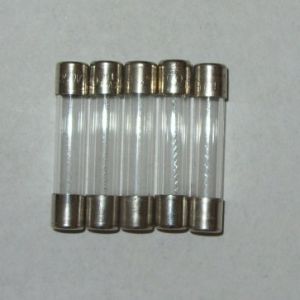

5 x original (salvaged) internal fuses from Commodore 64s
- Original salvaged fuses from C64s, all tested and in good condition.

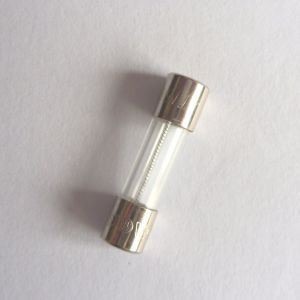

160mA 250V 20mm main fuse for C64 PSU
- As used in the common C64 grey "wedge" PSU (goes in the fuse holder at rear of the unit)

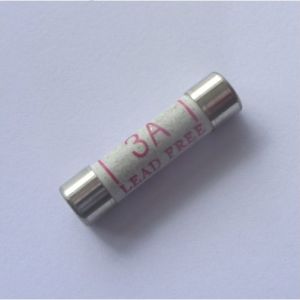

3 Amp Fuse for UK Mains Plug
- Appropriate fuse for the UK mains plug of Spectrum, Commodore 64 etc
- Brand new, made to BS1362 standard - ASTA approved.

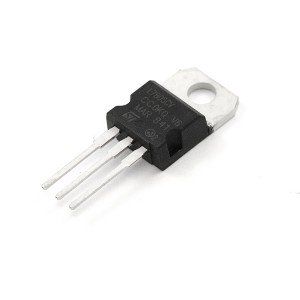

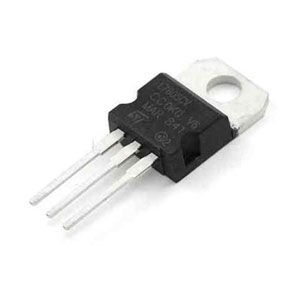

7805 Voltage Regulator
Replacement 5 volt regulator IC for the Spectrum, (breadbin) Commodore 64, ZX81 etc
7812 Voltage Regulator
Replacement 12 volt regulator for (breadbin) Commodore 64
Original RED Power LED cable for breadbin C64
- Original red Commodore 64 power LED with cable, plug and original grommet
- Also used in VIC 20
- Includes the original black fitting grommet
- Not suitable for the later white C64C since that uses a rectangular LED
- Note: Cable is approx 25CM long - some versions of the C64 (GS, Aldi) require a longer cable - please check.
- I also have new LED cables with red, green or blue LEDs - please see the C64 mods section.
Custom BLUE Power LED cable, for Breadbin C64
- A new, blue Commodore 64 power LED with cable, plug and grommet for custom case jobs
- For breadbin case C64 (can also be used in VIC 20)
- Not suitable for the later white C64C since that uses a rectangular LED
- Note: Cable is approx 45CM long so is suitable for "Breadbin" and "Aldi" model C64s)
Custom GREEN Power LED for Breadbin C64
- As above but with a green LED
Custom RED Power LED for breadbin C64
- As above but with a red LED.
New power LED *BLUE* for C64C with short cable
- New, rectangular BLUE power LED cable+connector for C64C case.
- Short (~14cm) cable so only suitable for the common "short" C64C PCBs with the LED connector towards the top left (not the transititional board p/n 250466 or any "breadbin" board - see below for those.)
New Power LED *BLUE* assembly for C64C with long cable
- A new non-original BLUE rectangular power LED with connector for C64C
- Same diffused white lens LED style as original but LED lights up blue.
- Not suitable for "breadbin" C64 (which has a 5mm round LED - see below for those).
- Cable is approx 45cm long - so suitable for all boards
- Original standard green / red C64C LED cables are listed below if required
New Power LED *GREEN* for C64C with long cable
- A new non-original GREEN rectangular power LED with connector for C64C
- Same diffused white lens LED style as original but LED lights up green.
- Not suitable for "breadbin" C64 (which has a 5mm round LED - see below for those).
- Cable is approx 45cm long - so suitable for all boards
- Original standard green / red C64C LED cables are listed below if required
New Power LED *GREEN* for C64C with short cable
- A new non-original Green rectangular power LED with connector for C64C
- Same diffused white lens style as the original types.
- Not suitable for "breadbin" C64 (which has a 5mm round LED - see below for those).
- Cable is approx 14cm long - so only suitable for short boards that have the LED connector in the top left.
- Original standard green / red C64C LED cables are listed below if required
New Power LED *RED* for C64C with short cable
- A brand new (non-original) Red/Orange rectangular power LED with connector for C64C
- Same diffused white lens style as original types.
- Not suitable for "breadbin" C64 (which has a 5mm round LED - see below for those).
- Cable is approx 14cm long - so only suitable for short boards that have the LED connector in the top left.
- Original standard green / red C64C LED cables are listed below if required
New power LED *WHITE* for C64C with long cable
- A new custom WHITE rectangular power LED with connector for C64C
- Same diffused white lens style as the original types.
- Not suitable for "breadbin" C64 (which has a 5mm round LED - see below for those).
- Cable is approx 45cm long - so suitable for all C64C cases and motherboard combos.
New Power LED *WHITE* for C64C with short cable
- A new custom WHITE rectangular power LED with connector for C64C
- Same diffused white lens style as the original types.
- Not suitable for "breadbin" C64 (which has a 5mm round LED - see below for those).
- Cable is approx 14cm long - so only suitable for short boards that have the LED connector in the top left.
Original GREEN power LED assembly for C64C with short cable
- Original, rectangular GREEN power LED with connector for C64C
- Standard ~14cm cable so only suitable for the common "short" C64C PCBs with the LED connector towards the top left.
- Not suitable for "breadbin" C64 (see below for those).
Original RED Power LED assembly for C64C with short cable
- As above but with red LED
- Standard ~14cm cable, so only suitable for the "short" C64C boards with the LED connector in the top/left.
Original Commodore 64 Breadbin Case Screw
- These are the stubby-looking 6.6mm diameter head screws used in most* breadbins for attaching the keyboard to the upper case (and fixing the two halves of the case together).
- As these are original used parts they may have a little wear and tear.
- Sold individually
- * Note: Some breadbin cases used narrower screws - see the other screws listed below for suitable replacements.

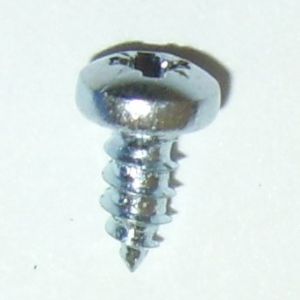

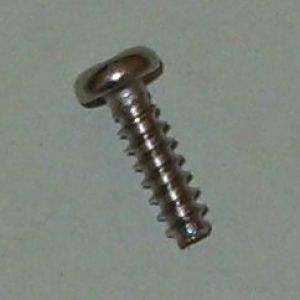

New Breadbin C64 / VIC20 / C16 Case / Keyboard Screw (6.6mm head, 3.5mm diameter thread)
- For the outer case and inside to attach the keyboard to the upper section.
- Note: Sometimes the narrow types were used instead - it seems completely random.
- These are brand new replacements - same dimensions as originals.
- Sold individually.

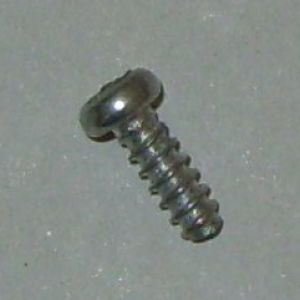

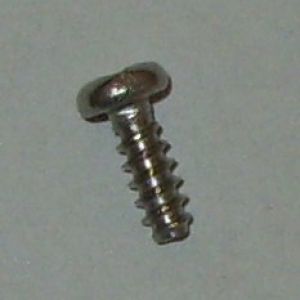

C64 (mainly breadbin), VIC20, C16 and Plus4 motherboard screw - New
- The breadbin used 7 of these screws for attaching the motherboard to the lower case.
- Also used for fixing the motherboard to the case in the later clip-together type C64C case (ie: those without metal keyboard brackets)
- Also used in the VIC20, C16 and Plus4
- Sold individually.
C64 narrow screw (breadbin case and keyboard) - New
- For breadbin C64s that used narrower (5.5mm diameter head) screws
- Where used, 3 hold the case together, and 8 fix the keyboard to the upper case
- Also used in the VIC20 (sometimes the wider types were used instead - seems to be completely random)
- Brand new replacement screws, sold individually.
Commodore 64C Case/Motherboard Screw 8mm *Original*
Used for:
- Underside of C64C case (3 screws) For C64C cases that are not just clipped together.
- Motherboard of C64C (5 screws) Note: the bottom left and right screws that pass through the metal keyboard brackets are are 10mm long - see above for those.
Notes:
- Clipped together C64C cases use the small 6mm breadbin type screws for the motheboard.
- These are original, salvaged parts sold individually - they may have some wear and tear.
Commodore 64C Case/Motherboard Screw 8mm - New
- As above but brand new replacement screws.
Commodore 64C Keyboard Bracket / Motherboard Screw 10mm - New
- As above but brand new replacement screws.

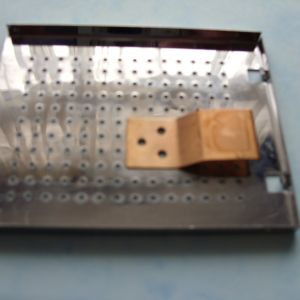

Lid for the video shield box on Commodore 64 PCB
- Part number: 251024 - As used in PCB assy no.s 250407 revs A,B,C
- Good condition, all tabs intact.
- Includes a cleaning swab and a sachet of thermal grease

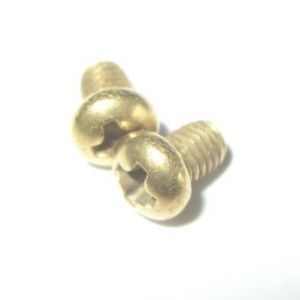

A Pair Of Screws for the Breadbin Port Plate
- Short brass screws used to hold port cover plate to the breadbin motherboard
- Pack of two.

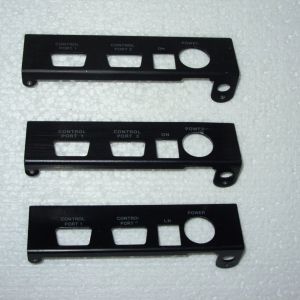

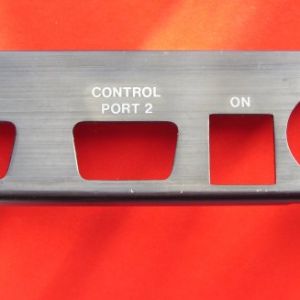

Port plate / bracket for "breadbin" style Commodore 64
- Clean and in very good condition, with all printed characters intact.
- This is the common type with a round cut-out for the power plug.
- Supplied with the original screws
- If there's any serious marks, they will be in the area hidden behind the case.

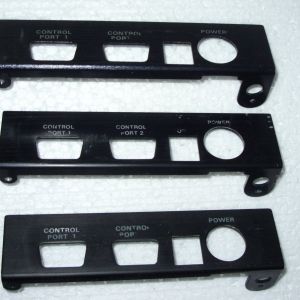

Port plate / bracket for "breadbin" style Commodore 64 *Grade B*
- Grade B so will have some small marks, worn characters or discolouration preventing it being Grade A condition
- Screws are included.

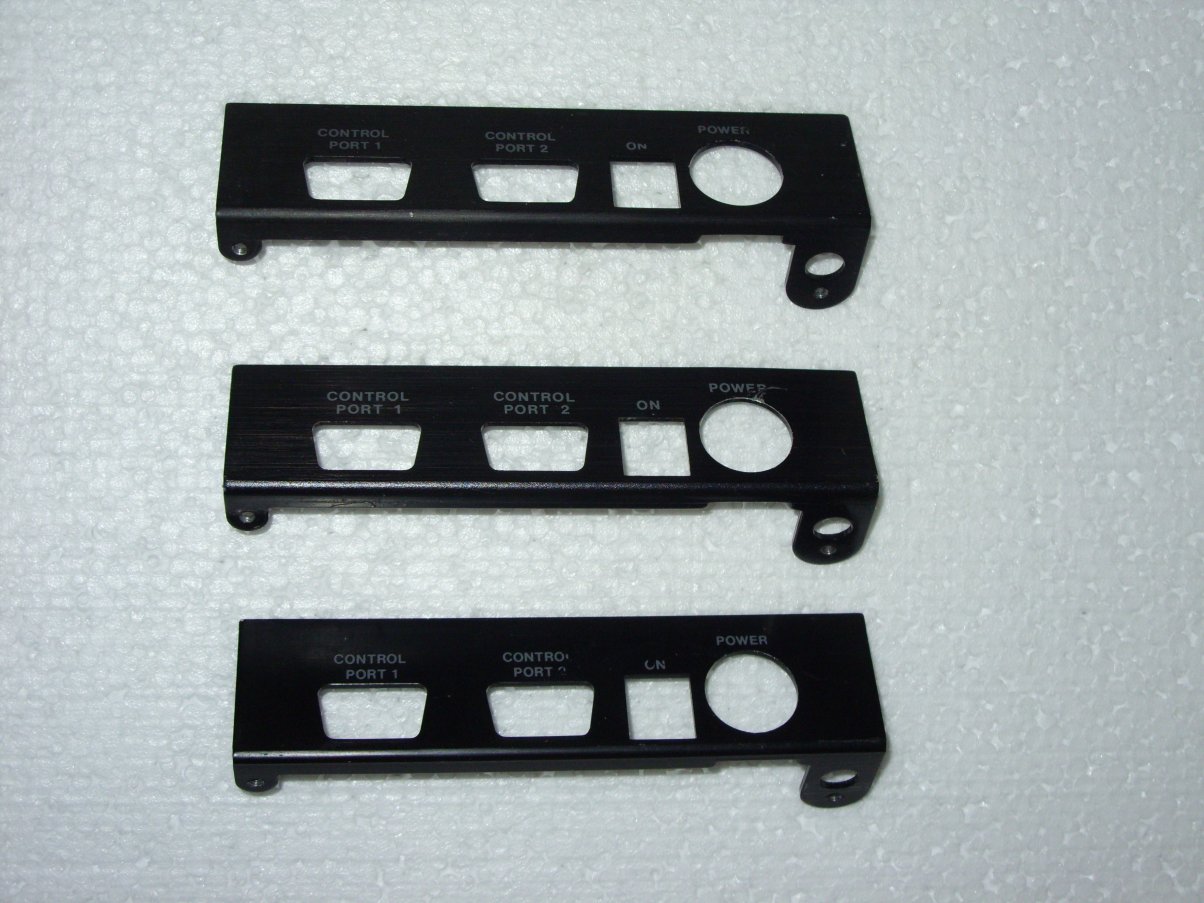

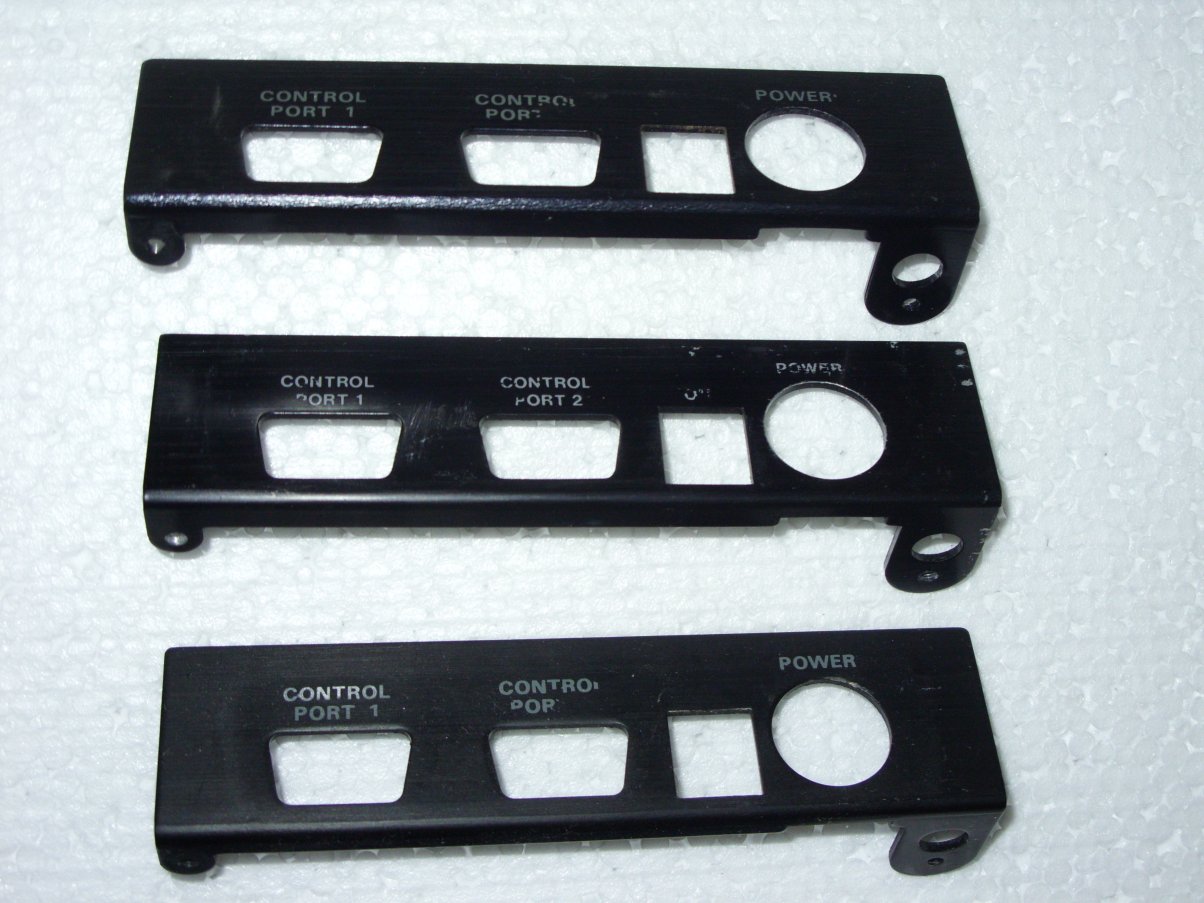

- Here are some examples of my Grade B condition brackets

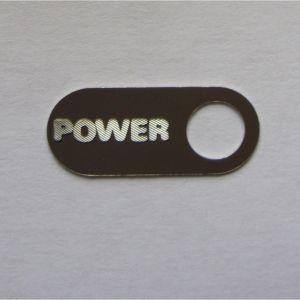

Commodore 64 Metal Power Badge * Grade A *
- Original C64 breadbin "Power" badge
- Salvaged part - so wont be mint condition - but there are no paint chips or major scratches
- Dimensions: 25.6 x 10.7 mm
- As it is very difficult to attach fresh double-sided tape evenly due to the hole for the power LED, these badges are best attached with a tiny spot of glue

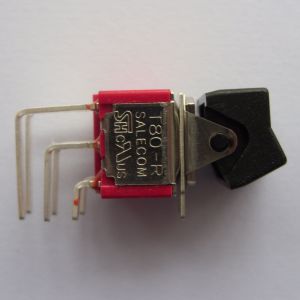

Power switch for Commodore 64 ** New **
- A brand new power switch for C64, C64C, VIC20 (the version with a round DIN-style power plug), C128 (but not D/DCR versions), 1541-II, 1581 and also CD32.

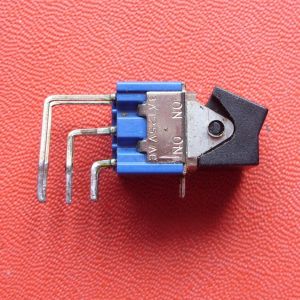

Power switch for Commodore 64 (salvaged)
- Salvaged power switch from a breadbin style C64.
- Cleaned and tested: Working
- Body of switch will be blue or black at random.

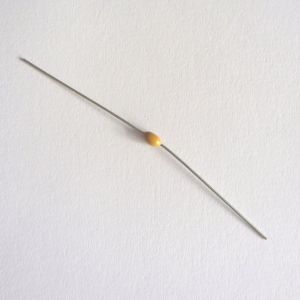

Restore key mod capacitor for Breadbin C64
- It has been found that replacing C38 with a 4.7nf capacitor improves the response of the restore key.
- EG: When modded, pressing RunStop+Restore should respond with the same pressure as any other key.
- More info here
RF TV Modulator for "breadbin" C64 - PAL version *Salvaged*
- Original salvaged unit, part number will be MD6-UE3E603, 251025-03 or 251697-02 - all are compatible.
- Tested: RF output good (grain, waviness or flaring are minimal) AV pass-through also tested and working.
- Note: These are not re-capped but I have capacitor kits for these if required.
- Due to their size, modulators are in the "small parcel" category so postage may be higher than expected within the UK (it doesn't make a lot of difference when sending overseas however)
- Cannot be used in the later C64C (these used a smaller modulator, please see my other listings)
RF TV Modulator for C64C *PAL version*
- Original salvaged unit, part number will be 251916-03 or 252405-03. (252405-03 has the sound band switch accessible on the back, 251916-03 has the switch inside with an access hole on the top - both models are interchangeable.)
- Tested: RF output good (little grain, waviness or flaring) AV pass-through also test and working.
- Note: These are not re-capped but I have capacitor kits for these if required.
- Due to their size, modulators are in the "small parcel" category so postage may be higher than expected within the UK (it doesn't make a lot of difference when sending overseas however)
- Cannot be used in the breadbin C64 (these used a larger modulator, please see my other listings)

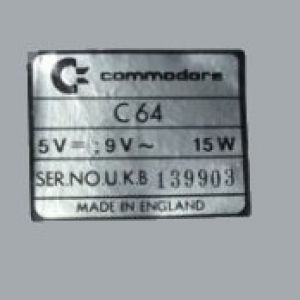

Original Serial Number Sticker for Breadbin C64 - "Made In England" types
- Original Metal foil serial number labels, cleanly removed from old C64 cases.
- In good condition - may have wear/wrinkles but not torn.
- Fresh double-sided tape attached ready to peel and apply.
- The following serial numbers are available - if you require a specific serial number from the list below, please state which in the Special Instructions box during checkout. If nothing is specified, I'll select one at random.
- Currently available: "U.K.B1391176", "U.K.B1322294", "U.K.B456348", "U.K.B396160"
|
