Commodore 64 Fixings
Screws Etc.. Products:
Click on the product thumbnail for an enlarged view.
New Clip / Grommet for Power LED
- For the standard 5mm round power LED used in the breadbin case.
- Clip and ring supplied, easy to fit.
Original Commodore 64 Breadbin Case Screw
- These are the stubby-looking 6.6mm diameter head screws used in most* breadbins for attaching the keyboard to the upper case (and fixing the two halves of the case together).
- As these are original used parts they may have a little wear and tear.
- Sold individually
- * Note: Some breadbin cases used narrower screws - see the other screws listed below for suitable replacements.
New Breadbin C64 / VIC20 / C16 Case / Keyboard Screw (6.6mm head, 3.5mm diameter thread)
- For the outer case and inside to attach the keyboard to the upper section.
- Note: Sometimes the narrow types were used instead - it seems completely random.
- These are brand new replacements - same dimensions as originals.
- Sold individually.
C64 (mainly breadbin), VIC20, C16 and Plus4 motherboard screw - New
- The breadbin used 7 of these screws for attaching the motherboard to the lower case.
- Also used for fixing the motherboard to the case in the later clip-together type C64C case (ie: those without metal keyboard brackets)
- Also used in the VIC20, C16 and Plus4
- Sold individually.
C64 narrow screw (breadbin case and keyboard) - New
- For breadbin C64s that used narrower (5.5mm diameter head) screws
- Where used, 3 hold the case together, and 8 fix the keyboard to the upper case
- Also used in the VIC20 (sometimes the wider types were used instead - seems to be completely random)
- Brand new replacement screws, sold individually.
Keyboard screws for Breadbin Commodore 64
- These are the tiny gold-coloured screws that fix the keyboard PCB to the black plastic body.
- From the springed-key type breadbin keyboard
- Sold in packs of 5
Commodore 64C Case/Motherboard Screw 8mm *Original*
Used for:
- Underside of C64C case (3 screws) For C64C cases that are not just clipped together.
- Motherboard of C64C (5 screws) Note: the bottom left and right screws that pass through the metal keyboard brackets are are 10mm long - see above for those.
Notes:
- Clipped together C64C cases use the small 6mm breadbin type screws for the motheboard.
- These are original, salvaged parts sold individually - they may have some wear and tear.
Commodore 64C Case/Motherboard Screw 8mm - New
- As above but brand new replacement screws.
Commodore 64C Keyboard Bracket / Motherboard Screw 10mm - New
- As above but brand new replacement screws.
Commodore 64C Keyboard-to-bracket screw - New
Used to attach the keyboard unit to the metal mounting brackets in the C64C.
Four new black rubber feet for breadbin C64, C16, Plus 4
- Pack of 4 brand new, self-adhesive rubber feet ready to peel and apply to the case

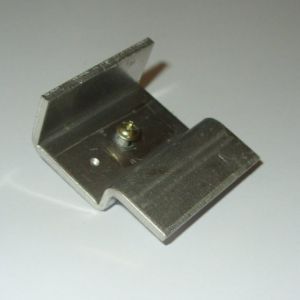

Heatsink for Breadbin 7805 Regulator
- Salvaged from an assembly no. 251137 PCB but also suitable for 250425 etc
- Includes nut and bolt

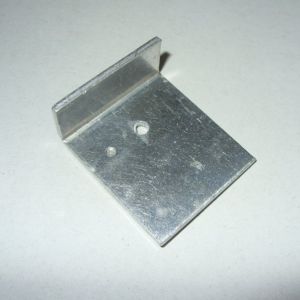

Heatsink for Breadbin 7805 Regulator - Later type
- This is the simple L-shaped type suitable for PCBs assembly no.s 250425 and 250466
- The main part of the heatsink lies across PCB traces so make sure the piece of insulating plastic is present on the PCB.
- Includes nut and bolt
Lid for the video shield box on Commodore 64 PCB
- Part number: 251024 - As used in PCB assy no.s 250407 revs A,B,C
- Good condition, all tabs intact.
- Includes a cleaning swab and a sachet of thermal grease

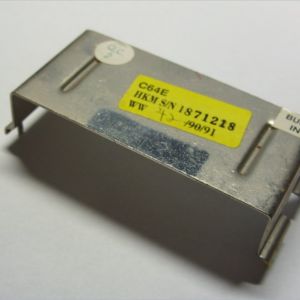

Cartridge Port Bracket for C64
- Original metal bracket that goes around the cartridge port of the C64 (it's the same design for the breadbin C64 and C64C - though the original labels attached may denote one or the other).
- Used, so will have wear and tear but no major rust
- These are taller than 2.5cm so classed as 'small parcel' for shipping.
A Pair Of Screws for the Breadbin Port Plate
- Short brass screws used to hold port cover plate to the breadbin motherboard
- Pack of two.

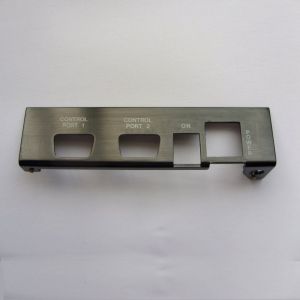

Port plate / bracket for "breadbin" style Commodore 64
- Clean and in very good condition, with all printed characters intact.
- This is the common type with a round cut-out for the power plug.
- Supplied with the original screws
- If there's any serious marks, they will be in the area hidden behind the case.
Port plate / bracket for "breadbin" style Commodore 64 *Grade B*
- Grade B so will have some small marks, worn characters or discolouration preventing it being Grade A condition
- Screws are included.
- Here are some examples of my Grade B condition brackets

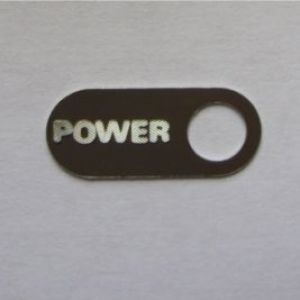

Commodore 64 Metal Power Badge * Grade A *
- Original C64 breadbin "Power" badge
- Salvaged part - so wont be mint condition - but there are no paint chips or major scratches
- Dimensions: 25.6 x 10.7 mm
- As it is very difficult to attach fresh double-sided tape evenly due to the hole for the power LED, these badges are best attached with a tiny spot of glue
Commodore 64 Metal Power Badge *Grade B*
- Original C64 breadbin "Power" badge
- Grade B - so will have a very minor mark / blemish
- As it is very difficult to attach fresh double-sided tape evenly due to the hole for the power LED, these badges are best attached with a tiny spot of glue

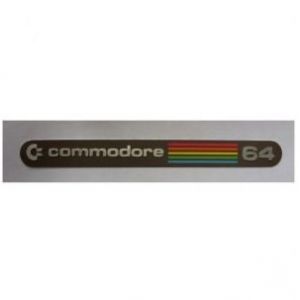

Commodore 64 Breadbin "Rainbow" Badge *Grade A*
- Original metal Commodore 64 rainbow badge in very good condition.
- As above but dimensions are 109.7mm x 10.5mm
- Please check your case to make sure it'll fit - the badge recess does vary from one C64 to another
- Salavaged part - not mint condition, but there are no paint chips or major scratches.
- Supplied with fresh double-sided tape on back ready to peel and apply to case.

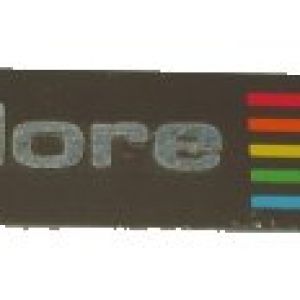

Commodore 64 Breadbin "Rainbow" Badge *Grade B*
- Original, salvaged metal Commodore 64 rainbow badge in good condition.
- Grade B - so will have some minor imperfections (but no egregious paint chips, dents or scratches)
- Dimensions are 110mm x 10.8mm - Please check your case to make sure it'll fit - the badge recess does vary from one C64 to another
- Supplied with fresh double-sided tape on back ready to peel and attach to case.
Commodore 64 Breadbin "Rainbow" Badge *Grade A*
- Original metal Commodore 64 rainbow badge in very good condition.
- Important: Dimensions are 110mm x 10.8mm
- Please check your case to make sure it'll fit - the badge recess does vary from one C64 to another
- Salavaged part - not mint condition, but there are no paint chips or major scratches.
- Supplied with fresh double-sided tape on back ready to peel and apply to case.
Original Serial Number Sticker for Breadbin C64 - "Made In England" types
- Original Metal foil serial number labels, cleanly removed from old C64 cases.
- In good condition - may have wear/wrinkles but not torn.
- Fresh double-sided tape attached ready to peel and apply.
- The following serial numbers are available - if you require a specific serial number from the list below, please state which in the Special Instructions box during checkout. If nothing is specified, I'll select one at random.
- Currently available: "U.K.B1391176", "U.K.B1322294", "U.K.B456348", "U.K.B396160"
Space Bar clip for C64 breadbin keyboard - For Type 1 Keyboards
These clips press into the main plastic body of the keyboard assembly and hold the metal crossbar part of the space bar in place (there is one at each end).
- From the "Type 1" metal spring breadbin keyboard with black cross-point plungers
- Despite looking similar, these wont fit Type 3 keyboards (fitted to some C64cs), they do fit the C16 keyboard however.
- Sold individually.
|
